Viewer3DImage< Space, KSpace > Class Template Reference

#include <visualisation/specificClasses/Viewer3DImage.h>

Inheritance diagram for Viewer3DImage< Space, KSpace >:

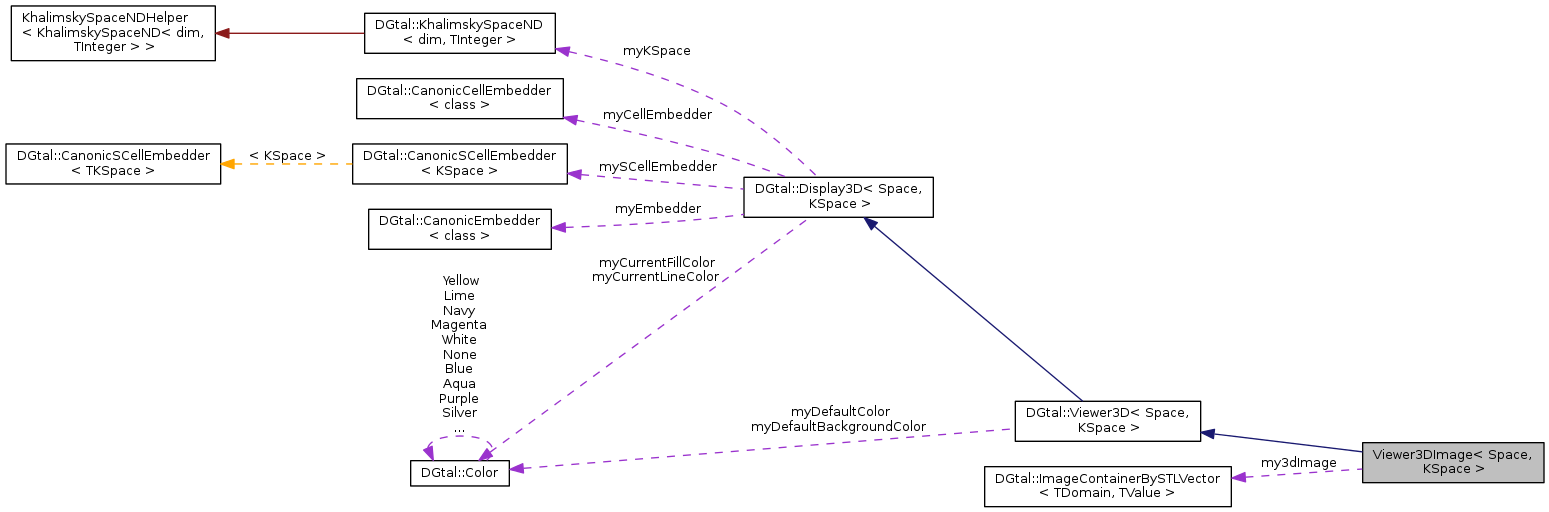

Collaboration diagram for Viewer3DImage< Space, KSpace >:

Public Types
enum	ModeVisu { BoundingBox, InterGrid, Grid, Empty }
Public Types inherited from DGtal::Viewer3D< Space, KSpace >
enum	RenderingMode
enum	ImageDirection
enum	TextureMode
typedef Display3D< Space, KSpace >	Display
typedef Display::SelectCallbackFct	SelectCallbackFct
typedef Display::RealPoint	RealPoint
Public Types inherited from DGtal::Display3D< Space, KSpace >
enum	StreamKey
typedef Display3D< Space, KSpace >	Self
typedef Space::RealPoint	RealPoint
typedef Space::RealVector	RealVector
typedef CanonicEmbedder< Space >	Embedder
typedef CanonicCellEmbedder< KSpace >	CellEmbedder
typedef CanonicSCellEmbedder< KSpace >	SCellEmbedder
typedef int(*	SelectCallbackFct) (void *viewer, DGtal::int32_t name, void *data)
typedef std::map< DGtal::int32_t, std::vector< QuadD3D > >	QuadsMap
typedef std::map< DGtal::int32_t, std::vector< CubeD3D > >	CubesMap
typedef std::map< std::string, std::string >	ModeMapping
typedef std::map< std::string, CountedPtr< DrawableWithDisplay3D > >	StyleMapping

Public Member Functions
	Viewer3DImage (ModeVisu aMode=BoundingBox)
	Viewer3DImage (Image3D *an3DImage)
void	setVolImage (Image3D *an3DImage)
Public Member Functions inherited from DGtal::Viewer3D< Space, KSpace >
	Viewer3D ()
	Viewer3D (const KSpace &KSEmb)
void	setCameraPosition (double ax, double ay, double az)
void	setCameraDirection (double ax, double ay, double az)
void	setCameraUpVector (double ax, double ay, double az)
void	setNearFar (double _near, double _far)
void	setGLScale (float sx, float sy, float sz)
void	setGLDoubleRenderingMode (bool doubleSidedRendering)
void	setGLMaterialShininessCoefficient (const GLfloat matShininessCoeff)
void	setGLLightAmbientCoefficients (const GLfloat lightAmbientCoeffs[4])
void	setGLLightDiffuseCoefficients (const GLfloat lightDiffuseCoeffs[4])
void	setGLLightSpecularCoefficients (const GLfloat lightSpecularCoeffs[4])
void	setUseGLPointForBalls (bool useOpenGLPt)
void	updateRenderingCoefficients (const RenderingMode aRenderMode, bool displayState=true)
Viewer3D< Space, KSpace > &	operator<< (const DGtal::Color &aColor)
Viewer3D< Space, KSpace > &	operator<< (const typename Viewer3D< Space, KSpace >::StreamKey &key)
void	sortSurfelFromCamera ()
void	sortTriangleFromCamera ()
void	sortQuadFromCamera ()
void	sortPolygonFromCamera ()
Viewer3D< Space, KSpace > &	operator<< (const TDrawableWithViewer3D &object)
void	selfDisplay (std::ostream &out) const
bool	isValid () const
virtual unsigned int	getCurrentDomainNumber ()
virtual unsigned int	getCurrentGLImageNumber ()
virtual void	paintGL ()
virtual void	show ()
void	addTextureImage (const TextureImage &image)
void	updateTextureImage (unsigned int imageIndex, const TImageType &image, const TFunctor &aFunctor, double xTranslation=0.0, double yTranslation=0.0, double zTranslation=0.0, double rotationAngle=0.0, ImageDirection rotationDir=zDirection)
void	updateOrientationTextureImage (unsigned int imageIndex, double xPosition, double yPosition, double zPosition, ImageDirection newDirection)
void	updateEmbeddingTextureImage (unsigned int anImageIndex, typename Space::Point aPoint1, typename Space::Point aPoint2, typename Space::Point aPoint3, typename Space::Point aPoint4)
void	addImage2DDomainD3D (const TDomain &anImageDomain, std::string mode, const DGtal::Color &aColor=DGtal::Color::Red)
void	updateAn2DDomainOrientation (unsigned int imageIndex, double xPosition, double yPosition, double zPosition, ImageDirection newDirection)
void	translateAn2DDomain (unsigned int domainIndex, double xTranslation, double yTranslation, double zTranslation)
std::vector< typename DGtal::Viewer3D< Space, KSpace >::LineD3D >	compute2DDomainLineRepresentation (Image2DDomainD3D &anImageDomain, double delta)
std::vector< typename DGtal::Viewer3D< Space, KSpace >::LineD3D >	compute2DDomainLineRepresentation (Image2DDomainD3D &anImageDomain)
void	rotateLineD3D (typename DGtal::Display3D< Space, KSpace >::LineD3D &aLine, DGtal::PointVector< 3, int > pt, double angleRotation, ImageDirection dirRotation)
void	rotateDomain (Image2DDomainD3D &anDom, double angle, ImageDirection rotationDir)
void	updateList (bool needToUpdateBoundingBox=true)
void	glDrawGLBall (const typename Viewer3D< Space, KSpace >::BallD3D &aBall)
virtual void	mouseMoveEvent (QMouseEvent *e)
virtual void	mousePressEvent (QMouseEvent *e)
virtual void	mouseReleaseEvent (QMouseEvent *e)
virtual void	drawWithNames ()
virtual void	draw ()
virtual void	postSelection (const QPoint &point)
virtual QDomElement	domElement (const QString &name, QDomDocument &document) const
virtual void	initFromDOMElement (const QDomElement &element)
Public Member Functions inherited from DGtal::Display3D< Space, KSpace >
	BOOST_CONCEPT_ASSERT ((concepts::CSpace< Space >))
virtual	~Display3D ()
	Display3D (const KSpace &KSEmb)
	Display3D ()
	Display3D (const Display3D &)=delete
	Display3D (Display3D &&)=delete
Display3D &	operator= (const Display3D &)=delete
Display3D &	operator= (Display3D &&)=delete
const Embedder &	embedder () const
const CellEmbedder &	cellEmbedder () const
const SCellEmbedder &	sCellEmbedder () const
const KSpace &	space () const
virtual void	setFillColor (DGtal::Color aColor)
virtual void	setFillTransparency (unsigned char alpha)
virtual void	setLineColor (DGtal::Color aColor)
virtual DGtal::Color	getFillColor ()
virtual DGtal::Color	getLineColor ()
virtual void	setKSpace (const KSpace &aKSpace)
void	setName3d (DGtal::int32_t name=-1)
DGtal::int32_t	name3d () const
void	setSelectCallback3D (SelectCallbackFct fct, void *data, DGtal::int32_t min_name, DGtal::int32_t max_name)
SelectCallbackFct	getSelectCallback3D (DGtal::int32_t aName, void *&data) const
void	addClippingPlane (double a, double b, double c, double d, bool drawPlane)
std::string	getMode (const std::string &objectName) const
void	createNewLineList (std::string s="")
void	createNewBallList (std::string s="")
DGtal::int32_t	createNewCubeList ()
bool	deleteCubeList (const DGtal::int32_t name)
DGtal::int32_t	createNewQuadList ()
bool	deleteQuadList (const DGtal::int32_t name)
void	createNewTriangleList (std::string s="")
void	createNewPolygonList (std::string s="")
void	addQuad (const RealPoint &p1, const RealPoint &p2, const RealPoint &p3, const RealPoint &p4)
void	addQuadWithNormal (const RealPoint &p1, const RealPoint &p2, const RealPoint &p3, const RealPoint &p4, const RealPoint &n, const bool enableReorientation, const bool enableDoubleFace=false)
void	addQuadFromSurfelCenter (const RealPoint &baseQuadCenter, bool xSurfel, bool ySurfel, bool zSurfel)
void	addQuadFromSurfelCenterWithNormal (const RealPoint &baseQuadCenter, bool xSurfel, bool ySurfel, bool zSurfel, const RealVector &aNormal, const bool enableReorientation, const bool sign, const bool enableDoubleFace=false)
void	addTriangle (const RealPoint &p1, const RealPoint &p2, const RealPoint &p3)
void	addPolygon (const std::vector< RealPoint > &vertices)
void	addLine (const RealPoint &p1, const RealPoint &p2, const double width=0.03)
void	addCube (const RealPoint &center, double width=1.0)
void	addBall (const RealPoint &center, const double radius=0.5, const unsigned int resolution=30)
void	addPrism (const RealPoint &baseQuadCenter, bool xSurfel, bool ySurfel, bool zSurfel, double sizeShiftFactor, double sizeFactor=1.0, bool isSigned=false, bool aSign=true)
void	addBasicSurfel (const RealPoint &baseQuadCenter, bool xSurfel, bool ySurfel, bool zSurfel)
void	addCone (const RealPoint &p1, const RealPoint &p2, double width=0.08)
void	addCylinder (const RealPoint &p1, const RealPoint &p2, const double width=0.02)
void	updateBoundingBox (const RealPoint &point)
void	exportToMesh (Mesh< RealPoint > &aMesh) const
Display3D &	operator<< (const TDrawableWithDisplay3D &object)
void	selfDisplay (std::ostream &out) const
bool	isValid () const
void	clear ()
RealPoint	embed (const typename Space::Point &dp) const
RealPoint	embedKS (const typename KSpace::SCell &cell) const
RealPoint	embedKS (const DGtal::TransformedPrism &aTrans) const
RealPoint	embedK (const typename KSpace::Cell &cell) const

Protected Member Functions
virtual QString	helpString () const
virtual void	keyPressEvent (QKeyEvent *e)
virtual void	init ()
Protected Member Functions inherited from DGtal::Viewer3D< Space, KSpace >
virtual void	closeEvent (QCloseEvent *e)

Protected Attributes
Image3D *	my3dImage
float	myScaleX
float	myScaleY
float	myScaleZ
int	mySliceXPos
int	mySliceYPos
int	mySliceZPos
int	myCurrentSliceDim
double	myAngleRotation
double	myTotalAngleRotationX
double	myTotalAngleRotationY
double	myTotalAngleRotationZ
bool	myDisplayingInfo
DGtal::Z3i::Point	myImageOrigin
ModeVisu	myMode
Protected Attributes inherited from DGtal::Display3D< Space, KSpace >
KSpace	myKSpace
Embedder *	myEmbedder
CellEmbedder *	myCellEmbedder
SCellEmbedder *	mySCellEmbedder
DGtal::Color	myCurrentFillColor
DGtal::Color	myCurrentLineColor
double	myCurrentfShiftVisuPrisms
std::vector< std::vector< LineD3D > >	myLineSetList
std::vector< std::vector< BallD3D > >	myBallSetList
std::vector< ClippingPlaneD3D >	myClippingPlaneList
std::vector< QuadD3D >	myPrismList
QuadsMap	myQuadsMap
std::vector< std::vector< TriangleD3D > >	myTriangleSetList
std::vector< std::vector< PolygonD3D > >	myPolygonSetList
CubesMap	myCubesMap
std::vector< std::string >	myCubeSetNameList
std::vector< std::string >	myLineSetNameList
std::vector< std::string >	myBallSetNameList
std::vector< std::string >	myClippingPlaneNameList
std::vector< std::string >	myPrismNameList
std::vector< std::string >	myQuadSetNameList
std::vector< std::string >	myTriangleSetNameList
std::vector< std::string >	myPolygonSetNameList
DGtal::int32_t	myName3d
std::set< SelectCallbackFctStore >	mySelectCallBackFcts

Private Types
typedef DGtal::ImageContainerBySTLVector< DGtal::Z3i::Domain, unsigned char >	Image3D
typedef DGtal::ImageContainerBySTLVector< DGtal::Z2i::Domain, unsigned char >	Image2D
typedef DGtal::ConstImageAdapter< Image3D, Image2D::Domain, DGtal::functors::Projector< DGtal::Z3i::Space >, Image3D::Value, DGtal::functors::Identity >	SliceImageAdapter
typedef DGtal::ConstImageAdapter< Image3D, DGtal::Z2i::Domain, DGtal::functors::SliceRotator2D< DGtal::Z3i::Domain >, Image3D::Value, DGtal::functors::Identity >	MyRotatorSliceImageAdapter

Additional Inherited Members
Static Public Member Functions inherited from DGtal::Viewer3D< Space, KSpace >
static void	rotateImageVertex (TImageORDomain &anImageOrDom, double angle, ImageDirection rotationDir)
static void	rotatePoint (TValues &x, TValues &y, TValues &z, double cx, double cy, double cz, double rotationAngle, ImageDirection rotationDir)
Data Fields inherited from DGtal::Viewer3D< Space, KSpace >
	RenderingDefault
	RenderingMetallic
	RenderingPlastic
	RenderingLambertian
	xDirection
	yDirection
	zDirection
	undefDirection
	RGBMode
	GrayScaleMode
DGtal::Color	myDefaultBackgroundColor
DGtal::Color	myDefaultColor
bool	myIsBackgroundDefault
bool	myViewWire
double	myGLPointMinWidth
double	myGLLineMinWidth
bool	myAutoSaveState
RenderingMode	myRenderingMode
Data Fields inherited from DGtal::Display3D< Space, KSpace >
	addNewList
	updateDisplay
	shiftSurfelVisu
ModeMapping	myModes
StyleMapping	myStyles
bool	myBoundingPtEmptyTag
double	myBoundingPtUp [3]
double	myBoundingPtLow [3]
Static Protected Member Functions inherited from DGtal::Display3D< Space, KSpace >
static void	cross (double dst[3], double srcA[3], double srcB[3])
static void	normalize (double vec[3])

Detailed Description

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>
class Viewer3DImage< Space, KSpace >

Prevents repeated inclusion of headers.

Definition at line 23 of file Viewer3DImage.h.

Member Typedef Documentation

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>

typedef DGtal::ImageContainerBySTLVector<DGtal::Z2i::Domain, unsigned char> Viewer3DImage< Space, KSpace >::Image2D

private

Definition at line 27 of file Viewer3DImage.h.

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>

typedef DGtal::ImageContainerBySTLVector<DGtal::Z3i::Domain, unsigned char> Viewer3DImage< Space, KSpace >::Image3D

private

Definition at line 26 of file Viewer3DImage.h.

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>

typedef DGtal::ConstImageAdapter<Image3D, DGtal::Z2i::Domain, DGtal::functors::SliceRotator2D< DGtal::Z3i::Domain >, Image3D::Value, DGtal::functors::Identity > Viewer3DImage< Space, KSpace >::MyRotatorSliceImageAdapter

private

Definition at line 33 of file Viewer3DImage.h.

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>

typedef DGtal::ConstImageAdapter<Image3D, Image2D::Domain, DGtal::functors::Projector< DGtal::Z3i::Space>, Image3D::Value, DGtal::functors::Identity > Viewer3DImage< Space, KSpace >::SliceImageAdapter

private

Definition at line 30 of file Viewer3DImage.h.

Member Enumeration Documentation

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>

enum Viewer3DImage::ModeVisu

Enumerator
BoundingBox
InterGrid
Grid
Empty

Definition at line 38 of file Viewer3DImage.h.

{ BoundingBox, InterGrid, Grid, Empty};

Constructor & Destructor Documentation

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>

Viewer3DImage< Space, KSpace >::Viewer3DImage ( ModeVisu  aMode = BoundingBox )

inline

Definition at line 40 of file Viewer3DImage.h.

References Viewer3DImage< Space, KSpace >::myAngleRotation, Viewer3DImage< Space, KSpace >::myCurrentSliceDim, Viewer3DImage< Space, KSpace >::myDisplayingInfo, Viewer3DImage< Space, KSpace >::myMode, Viewer3DImage< Space, KSpace >::mySliceXPos, Viewer3DImage< Space, KSpace >::mySliceYPos, Viewer3DImage< Space, KSpace >::mySliceZPos, Viewer3DImage< Space, KSpace >::myTotalAngleRotationX, Viewer3DImage< Space, KSpace >::myTotalAngleRotationY, and Viewer3DImage< Space, KSpace >::myTotalAngleRotationZ.

Referenced by Viewer3DImage< Space, KSpace >::Viewer3DImage().

                                            : DGtal::Viewer3D<Space, KSpace>(), myImageOrigin(DGtal::Z3i::Point(0,0,0)){
    mySliceXPos=0;
    mySliceYPos=0;
    mySliceZPos=0;
    myTotalAngleRotationX=0.0;
    myTotalAngleRotationY=0.0;
    myTotalAngleRotationZ=0.0;
    myAngleRotation=0.0;
    myCurrentSliceDim=0;
    myMode=aMode;
    myDisplayingInfo=true;
  }

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>

Viewer3DImage< Space, KSpace >::Viewer3DImage ( Image3D *  an3DImage )

inline

Definition at line 54 of file Viewer3DImage.h.

References Viewer3DImage< Space, KSpace >::my3dImage, and Viewer3DImage< Space, KSpace >::Viewer3DImage().

                                    {
    my3dImage = an3DImage;
    Viewer3DImage();
  }

Member Function Documentation

template<typename Space , typename KSpace >

QString Viewer3DImage< Space, KSpace >::helpString ( ) const

protectedvirtual

Reimplemented from DGtal::Viewer3D< Space, KSpace >.

Definition at line 128 of file Viewer3DImage.cpp.

{
  QString text ( "<h2> Viewer3DImage</h2>" );
  text += "Use the mouse to move the camera around the object. ";
  text += "You can respectively revolve around, zoom and translate with the three mouse buttons. ";
  text += "Left and middle buttons pressed together rotate around the camera view direction axis<br><br>";
  text += "Pressing <b>Alt</b> and one of the function keys (<b>F1</b>..<b>F12</b>) defines a camera keyFrame. ";
  text += "Simply press the function key again to restore it. Several keyFrames define a ";
  text += "camera path. Paths are saved when you quit the application and restored at next start.<br><br>";
  text += "Press <b>F</b> to display the frame rate, <b>A</b> for the world axis, ";
  text += "<b>Alt+Return</b> for full screen mode and <b>Control+S</b> to save a snapshot. ";
  text += "See the <b>Keyboard</b> tab in this window for a complete shortcut list.<br><br>";
  text += "Double clicks automates single click actions: A left button double click aligns the closer axis with the camera (if close enough). ";
  text += "A middle button double click fits the zoom of the camera and the right button re-centers the scene.<br><br>";
  text += "A left button double click while holding right button pressed defines the camera <i>Revolve Around Point</i>. ";
  text += "See the <b>Mouse</b> tab and the documentation web pages for details.<br><br>";
  text += "Press <b>Escape</b> to exit the viewer.";
  return text;
}

template<typename Space , typename KSpace >

void Viewer3DImage< Space, KSpace >::init ( )

protectedvirtual

Reimplemented from DGtal::Viewer3D< Space, KSpace >.

Definition at line 40 of file Viewer3DImage.cpp.

References DGtal::Viewer3D< Space, KSpace >::init().

                                   {
   DGtal::Viewer3D<>::init();

   QGLViewer::setKeyDescription ( Qt::Key_X, "Change the current axis to X for the current 2D image slice setting." );
   QGLViewer::setKeyDescription ( Qt::Key_Y, "Change the current axis to Y for the current 2D image slice setting." );
   QGLViewer::setKeyDescription ( Qt::Key_Z, "Change the current axis to Z for the current 2D image slice setting." );
   QGLViewer::setKeyDescription ( Qt::Key_Up, "Move the current 2D image slice to 5 in the positive direction of the current axis." );
   QGLViewer::setKeyDescription ( Qt::Key_Down, "Move the current 2D image slice to 5 in the negative direction of the current axis." );
   QGLViewer::setKeyDescription ( Qt::Key_Shift, "Change the slice move with step 1 (5 by default)" );
   QGLViewer::setKeyDescription ( Qt::Key_M, "Hide/Display message informations (slice numbers, selected axis)" );
}

template<typename Space , typename KSpace >

void Viewer3DImage< Space, KSpace >::keyPressEvent ( QKeyEvent *  e )

protectedvirtual

Reimplemented from DGtal::Viewer3D< Space, KSpace >.

Definition at line 154 of file Viewer3DImage.cpp.

References DGtal::Viewer3D< Space, KSpace >::keyPressEvent().

{

  bool handled = false;
  if( e->key() == Qt::Key_M){
    myDisplayingInfo = !myDisplayingInfo;
    handled=true;
  }
  if( e->key() == Qt::Key_I){
    std::cout << "Image generation" << std::endl;
    handled=true;
  }

  if( e->key() == Qt::Key_X){
    std::cout << "Current axis set to X" << std::endl;
    (*this).displayMessage(QString("Current axis set to X"), 100000);
    myCurrentSliceDim=0;
    handled=true;
  }
  if( e->key() == Qt::Key_Y){
    (*this).displayMessage(QString("Current axis set to Y"), 100000);
    myCurrentSliceDim=1;
    handled=true;
  }
  if( e->key() == Qt::Key_Z){
    (*this).displayMessage(QString("Current axis set to Z"), 100000);
    myCurrentSliceDim=2;
    handled=true;
  }
  if( e->key() == Qt::Key_Up ||  e->key() == Qt::Key_Down){
    int dirStep = (e->key() == Qt::Key_Up)? 5: -5;
    if((e->modifiers() & Qt::ShiftModifier)){
      dirStep/=5;
    }
    if((e->modifiers() & Qt::MetaModifier)){
      myAngleRotation =(e->key() == Qt::Key_Down)? 0.1: -0.1;
      dirStep=0;
    }else{
      myAngleRotation=0.0;
    }
    int aSliceNum=0;
    int aSliceMax=0;
    bool stoped=false;
    if(myCurrentSliceDim==0){
      aSliceMax=my3dImage->domain().upperBound()[0]+1;
      if(mySliceXPos+dirStep<aSliceMax&&mySliceXPos+dirStep>=myImageOrigin[0]){
         mySliceXPos+=dirStep;
      }else{
        stoped=true;
      }

      aSliceNum=mySliceXPos;
    }else if(myCurrentSliceDim==1){
      aSliceMax=my3dImage->domain().upperBound()[1]+1;
      if(mySliceYPos+dirStep<aSliceMax&&mySliceYPos+dirStep>=myImageOrigin[1]){
         mySliceYPos+=dirStep;
      }else{
        stoped=true;
      }
      aSliceNum=mySliceYPos;
    }else if(myCurrentSliceDim==2){
      aSliceMax=my3dImage->domain().upperBound()[2]+1;
       if(mySliceZPos+dirStep<aSliceMax&&mySliceZPos+dirStep>=myImageOrigin[2]){
         mySliceZPos+=dirStep;
       }else{
         stoped=true;
       }
       aSliceNum=mySliceZPos;
    }

    if(!stoped){
      double myTotalAngleRotation=0.0;
      if(myCurrentSliceDim==0){
        myTotalAngleRotationX+=myAngleRotation;
        myTotalAngleRotation = myTotalAngleRotationX;
      }else if (myCurrentSliceDim==1){
        myTotalAngleRotationY+=myAngleRotation;
        myTotalAngleRotation = myTotalAngleRotationY;
      }else if (myCurrentSliceDim==2){
        myTotalAngleRotationZ+=myAngleRotation;
        myTotalAngleRotation = myTotalAngleRotationZ;
      }

      DGtal::functors::SliceRotator2D<DGtal::Z3i::Domain> aSliceFunctor(myCurrentSliceDim, my3dImage->domain(),
                                                              aSliceNum, 2, myTotalAngleRotation);
      // Adding X slice in the viewer.
      DGtal::functors::Projector<DGtal::Z2i::Space>  invFunctor; invFunctor.initRemoveOneDim(myCurrentSliceDim);
      DGtal::Z2i::Domain domain2D(invFunctor(my3dImage->domain().lowerBound()),
                                  invFunctor(my3dImage->domain().upperBound()));

      const DGtal::functors::Identity identityFunctor{};
      MyRotatorSliceImageAdapter sliceImage( *my3dImage, domain2D, aSliceFunctor, identityFunctor );

      (*this) << DGtal::UpdateImageData<MyRotatorSliceImageAdapter>(myCurrentSliceDim, sliceImage,
                                                                   (myCurrentSliceDim==0)? dirStep: 0.0,
                                                                   (myCurrentSliceDim==1)? dirStep: 0.0,
                                                                   (myCurrentSliceDim==2)? dirStep: 0.0,
                                                           myAngleRotation, DGtal::Viewer3D<>::zDirection);
      (*this).updateList(false);
      (*this).update();
    }
    if(myDisplayingInfo){
      std::stringstream sstring;
      sstring << "slice X: " << mySliceXPos ;
      sstring << " slice Y: " << mySliceYPos ;
      sstring << " slice Z: " << mySliceZPos ;
      (*this).displayMessage(QString(sstring.str().c_str()), 100000);
    }




    handled=true;
  }

  if ( !handled )
    DGtal::Viewer3D<>::keyPressEvent ( e );

}

template<typename Space , typename KSpace >

void Viewer3DImage< Space, KSpace >::setVolImage

(

Image3D *

an3DImage

)

Definition at line 55 of file Viewer3DImage.cpp.

References DGtal::ConstImageAdapter< TImageContainer, TNewDomain, TFunctorD, TNewValue, TFunctorV >::className(), DGtal::functors::Projector< S >::initAddOneDim(), and DGtal::functors::Projector< S >::initRemoveOneDim().

                                                             {
  my3dImage = an3DImage;

  switch (myMode) {
  case BoundingBox:
    (*this) << DGtal::SetMode3D("ConstImageAdapter", "BoundingBox");
    break;
  case InterGrid:
    (*this) << DGtal::SetMode3D("ConstImageAdapter", "InterGrid");
    break;
  case Grid:
    (*this) << DGtal::SetMode3D("ConstImageAdapter", "Grid");
    break;
  case Empty:
    (*this) << DGtal::SetMode3D("ConstImageAdapter", "");
    break;
  }

  myImageOrigin = my3dImage->domain().lowerBound();
  (*this).updateList(false);
  (*this).update();

  mySliceXPos=myImageOrigin[0];
  mySliceYPos=myImageOrigin[1];
  mySliceZPos=myImageOrigin[2];

 // Adding X slice in the viewer.
  DGtal::functors::Projector<DGtal::Z2i::Space>  invFunctorX; invFunctorX.initRemoveOneDim(0);
  DGtal::Z2i::Domain domain2DX(invFunctorX(my3dImage->domain().lowerBound()),
                               invFunctorX(my3dImage->domain().upperBound()));


  DGtal::functors::SliceRotator2D<DGtal::Z3i::Domain> aSliceFunctorX(0, my3dImage->domain(), mySliceXPos,2, myAngleRotation );
  const DGtal::functors::Identity identityFunctor{};
  MyRotatorSliceImageAdapter sliceImageX( *my3dImage, domain2DX, aSliceFunctorX, identityFunctor );

  std::cout << "image:" << sliceImageX.className();
  (*this) << sliceImageX;
  (*this) << DGtal::UpdateImagePosition< Space, KSpace >(0, DGtal::Viewer3D<>::xDirection, mySliceXPos,myImageOrigin[1], myImageOrigin[2]);


  // Adding Y slice in the viewer.
  DGtal::functors::Projector<DGtal::Z2i::Space>  invFunctorY; invFunctorY.initRemoveOneDim(1);
  DGtal::Z2i::Domain domain2DY(invFunctorY(my3dImage->domain().lowerBound()),
                               invFunctorY(my3dImage->domain().upperBound()));

  DGtal::functors::Projector<DGtal::Z3i::Space> aSliceFunctorY(mySliceYPos); aSliceFunctorY.initAddOneDim(1);
  SliceImageAdapter sliceImageY(*my3dImage, domain2DY, aSliceFunctorY, identityFunctor );
  (*this) << sliceImageY;
  (*this) << DGtal::UpdateImagePosition< Space, KSpace >(1, DGtal::Viewer3D<>::yDirection, myImageOrigin[0], mySliceYPos, myImageOrigin[2]);





   // Adding Z slice in the viewer.
  DGtal::functors::Projector<DGtal::Z2i::Space>  invFunctorZ; invFunctorZ.initRemoveOneDim(2);
  DGtal::Z2i::Domain domain2DZ(invFunctorZ(my3dImage->domain().lowerBound()),
                               invFunctorZ(my3dImage->domain().upperBound()));

  DGtal::Z3i::Point centerZ((my3dImage->domain().upperBound())[0]/2, (my3dImage->domain().upperBound())[1]/2, mySliceZPos);

  DGtal::functors::SliceRotator2D<DGtal::Z3i::Domain> aSliceFunctorZ(2, my3dImage->domain(), mySliceZPos, 2, myAngleRotation, centerZ );
  MyRotatorSliceImageAdapter sliceImageZ( *my3dImage, domain2DZ, aSliceFunctorZ, identityFunctor );
  (*this) << sliceImageZ;
  (*this) << DGtal::UpdateImagePosition< Space, KSpace > (2, DGtal::Viewer3D<>::zDirection, myImageOrigin[0], myImageOrigin[1], mySliceZPos);
  (*this) << DGtal::Viewer3D<>::updateDisplay;

}

Field Documentation

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>

Image3D* Viewer3DImage< Space, KSpace >::my3dImage

protected

Definition at line 68 of file Viewer3DImage.h.

Referenced by Viewer3DImage< Space, KSpace >::Viewer3DImage().

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>

double Viewer3DImage< Space, KSpace >::myAngleRotation

protected

Definition at line 76 of file Viewer3DImage.h.

Referenced by Viewer3DImage< Space, KSpace >::Viewer3DImage().

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>

int Viewer3DImage< Space, KSpace >::myCurrentSliceDim

protected

Definition at line 75 of file Viewer3DImage.h.

Referenced by Viewer3DImage< Space, KSpace >::Viewer3DImage().

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>

bool Viewer3DImage< Space, KSpace >::myDisplayingInfo

protected

Definition at line 80 of file Viewer3DImage.h.

Referenced by Viewer3DImage< Space, KSpace >::Viewer3DImage().

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>

DGtal::Z3i::Point Viewer3DImage< Space, KSpace >::myImageOrigin

protected

Definition at line 81 of file Viewer3DImage.h.

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>

ModeVisu Viewer3DImage< Space, KSpace >::myMode

protected

Definition at line 82 of file Viewer3DImage.h.

Referenced by Viewer3DImage< Space, KSpace >::Viewer3DImage().

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>

float Viewer3DImage< Space, KSpace >::myScaleX

protected

Definition at line 69 of file Viewer3DImage.h.

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>

float Viewer3DImage< Space, KSpace >::myScaleY

protected

Definition at line 70 of file Viewer3DImage.h.

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>

float Viewer3DImage< Space, KSpace >::myScaleZ

protected

Definition at line 71 of file Viewer3DImage.h.

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>

int Viewer3DImage< Space, KSpace >::mySliceXPos

protected

Definition at line 72 of file Viewer3DImage.h.

Referenced by Viewer3DImage< Space, KSpace >::Viewer3DImage().

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>

int Viewer3DImage< Space, KSpace >::mySliceYPos

protected

Definition at line 73 of file Viewer3DImage.h.

Referenced by Viewer3DImage< Space, KSpace >::Viewer3DImage().

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>

int Viewer3DImage< Space, KSpace >::mySliceZPos

protected

Definition at line 74 of file Viewer3DImage.h.

Referenced by Viewer3DImage< Space, KSpace >::Viewer3DImage().

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>

double Viewer3DImage< Space, KSpace >::myTotalAngleRotationX

protected

Definition at line 77 of file Viewer3DImage.h.

Referenced by Viewer3DImage< Space, KSpace >::Viewer3DImage().

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>

double Viewer3DImage< Space, KSpace >::myTotalAngleRotationY

protected

Definition at line 78 of file Viewer3DImage.h.

Referenced by Viewer3DImage< Space, KSpace >::Viewer3DImage().

template<typename Space = DGtal::Z3i::Space, typename KSpace = DGtal::Z3i::KSpace>

double Viewer3DImage< Space, KSpace >::myTotalAngleRotationZ

protected

Definition at line 79 of file Viewer3DImage.h.

Referenced by Viewer3DImage< Space, KSpace >::Viewer3DImage().

---

The documentation for this class was generated from the following files:

• Viewer3DImage.h
• Viewer3DImage.cpp
