MainWindow Class Reference

#include <visualisation/sliceViewer.h>

Inherits QMainWindow.

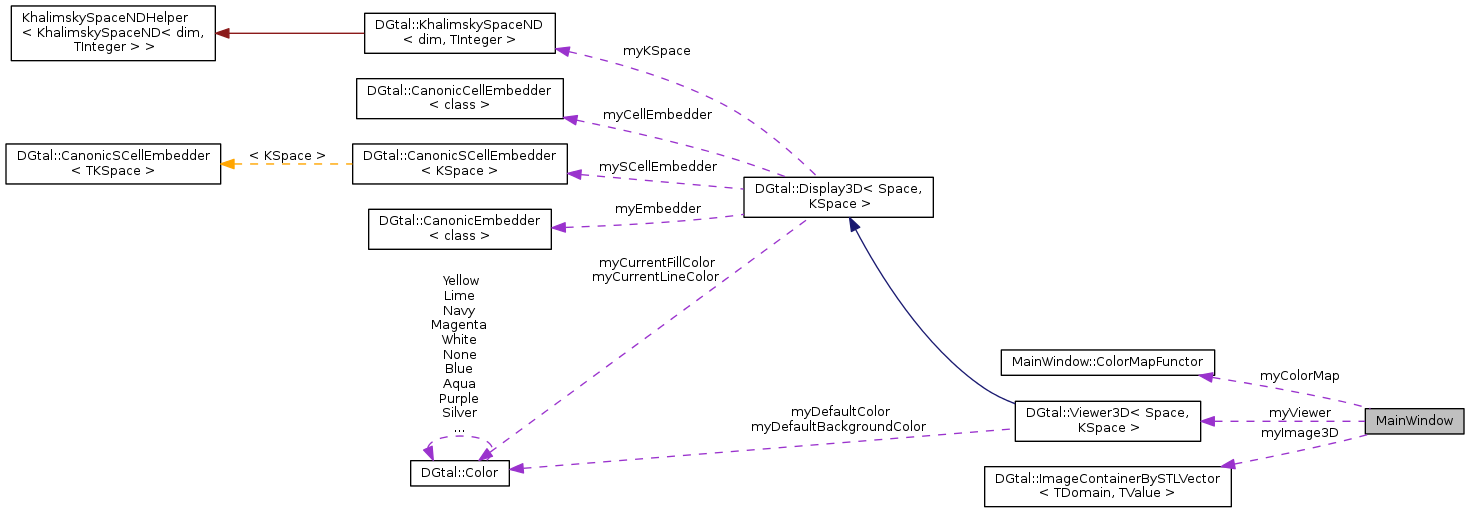

Collaboration diagram for MainWindow:

Data Structures
struct	ColorMapFunctor

Public Types
enum	ColorMapType { Id, GradientMapHot, GradientMapCool, HueshadeCM }
typedef DGtal::ImageContainerBySTLVector< DGtal::Z3i::Domain, unsigned char >	Image3D
typedef DGtal::ImageContainerBySTLVector< DGtal::Z2i::Domain, unsigned char >	Image2D
typedef DGtal::ConstImageAdapter< Image3D, Image2D::Domain, DGtal::functors::Projector< DGtal::Z3i::Space >, Image3D::Value, DGtal::functors::Identity >	SliceImageAdapter
typedef DGtal::ConstImageAdapter< Image3D, Image2D::Domain, DGtal::functors::Projector< DGtal::Z3i::Space >, Image3D::Value, ColorMapFunctor >	SliceImageAdapterFct

Public Slots
void	updateSliceImageX ()
void	updateSliceImageY ()
void	updateSliceImageZ ()
void	updateZoomImageX ()
void	updateZoomImageY ()
void	updateZoomImageZ ()
void	setScale1_1_ImageX ()
void	setScale1_1_ImageY ()
void	setScale1_1_ImageZ ()
void	changeNormalColorMap ()
void	changeCoolColorMap ()
void	changeHueColorMap ()
void	changeHotColorMap ()

Public Member Functions
	MainWindow (DGtal::Viewer3D<> *viewer, DGtal::ImageContainerBySTLVector< DGtal::Z3i::Domain, unsigned char > *myImage3D, const ColorMapFunctor &aFunctor, QWidget *parent=0, Qt::WindowFlags flags=0)
	~MainWindow ()
void	setImageProjX (const QPixmap &aPixMap)
void	setImageProjY (const QPixmap &aPixMap)
void	setImageProjZ (const QPixmap &aPixMap)
void	updateSliceImageX (int sliceNumber, bool init)
void	updateSliceImageY (int sliceNumber, bool init)
void	updateSliceImageZ (int sliceNumber, bool init)
void	updateZoomImageX (int sliceNumber, double gridSize)
void	updateZoomImageY (int sliceNumber, double gridSize)
void	updateZoomImageZ (int sliceNumber, double gridSize)
void	updateAllDisplayedImages ()

Private Attributes
Ui::MainWindow *	ui
DGtal::Viewer3D *	myViewer
Image3D *	myImage3D
ColorMapFunctor	myColorMap

Detailed Description

Definition at line 48 of file sliceViewer.h.

Member Typedef Documentation

typedef DGtal::ImageContainerBySTLVector< DGtal::Z2i::Domain, unsigned char > MainWindow::Image2D

Definition at line 96 of file sliceViewer.h.

typedef DGtal::ImageContainerBySTLVector< DGtal::Z3i::Domain, unsigned char > MainWindow::Image3D

Definition at line 95 of file sliceViewer.h.

typedef DGtal::ConstImageAdapter<Image3D, Image2D::Domain, DGtal::functors::Projector< DGtal::Z3i::Space>, Image3D::Value, DGtal::functors::Identity > MainWindow::SliceImageAdapter

Definition at line 98 of file sliceViewer.h.

typedef DGtal::ConstImageAdapter<Image3D, Image2D::Domain, DGtal::functors::Projector< DGtal::Z3i::Space>, Image3D::Value, ColorMapFunctor > MainWindow::SliceImageAdapterFct

Definition at line 100 of file sliceViewer.h.

Member Enumeration Documentation

enum MainWindow::ColorMapType

Enumerator
Id
GradientMapHot
GradientMapCool
HueshadeCM

Definition at line 54 of file sliceViewer.h.

{Id, GradientMapHot, GradientMapCool,  HueshadeCM};

Constructor & Destructor Documentation

MainWindow::MainWindow ( DGtal::Viewer3D<> *  viewer, DGtal::ImageContainerBySTLVector< DGtal::Z3i::Domain, unsigned char > *  myImage3D, const ColorMapFunctor &  aFunctor, QWidget *  parent = 0, Qt::WindowFlags  flags = 0  )

explicit

Definition at line 138 of file sliceViewer.cpp.

References changeCoolColorMap(), changeHotColorMap(), changeHueColorMap(), changeNormalColorMap(), DGtal::ImageContainerBySTLVector< TDomain, TValue >::domain(), DGtal::HyperRectDomain< TSpace >::lowerBound(), setScale1_1_ImageX(), setScale1_1_ImageY(), setScale1_1_ImageZ(), ui, updateSliceImageX(), updateSliceImageY(), updateSliceImageZ(), updateZoomImageX(), updateZoomImageY(), updateZoomImageZ(), and DGtal::HyperRectDomain< TSpace >::upperBound().

                                                                                              :
  QMainWindow(parent),
  ui(new Ui::MainWindow),
  myViewer(aViewer),
  myImage3D(anImage),
  myColorMap(aFunctor)
{

  ui->setupUi(this);
  ui->verticalLayout_5->addWidget(aViewer);


  ui->_horizontalSliderZ->setMinimum(anImage->domain().lowerBound()[2]);
  ui->_horizontalSliderZ->setMaximum(anImage->domain().upperBound()[2]);
  ui->_horizontalSliderZ->setValue(anImage->domain().lowerBound()[2]);

  ui->_horizontalSliderY->setMinimum(anImage->domain().lowerBound()[1]);
  ui->_horizontalSliderY->setMaximum(anImage->domain().upperBound()[1]);
  ui->_horizontalSliderY->setValue(anImage->domain().lowerBound()[1]);

  ui->_horizontalSliderX->setMinimum(anImage->domain().lowerBound()[0]);
  ui->_horizontalSliderX->setMaximum(anImage->domain().upperBound()[0]);
  ui->_horizontalSliderX->setValue(anImage->domain().lowerBound()[0]);

  ui->_zoomXSlider->setMinimum( MIN_ZOOM_FACTOR);
  ui->_zoomXSlider->setMaximum( MAX_ZOOM_FACTOR);
  ui->_zoomXSlider->setValue(INIT_SCALE1_ZOOM_FACTOR);

  ui->_zoomYSlider->setMinimum(MIN_ZOOM_FACTOR);
  ui->_zoomYSlider->setMaximum(MAX_ZOOM_FACTOR);
  ui->_zoomYSlider->setValue(INIT_SCALE1_ZOOM_FACTOR);

  ui->_zoomZSlider->setMinimum(MIN_ZOOM_FACTOR);
  ui->_zoomZSlider->setMaximum(MAX_ZOOM_FACTOR);
  ui->_zoomZSlider->setValue(INIT_SCALE1_ZOOM_FACTOR);

  QObject::connect(ui->_horizontalSliderX, SIGNAL(valueChanged(int)), this, SLOT(updateSliceImageX()));
  QObject::connect(ui->_horizontalSliderY, SIGNAL(valueChanged(int)), this, SLOT(updateSliceImageY()));
  QObject::connect(ui->_horizontalSliderZ, SIGNAL(valueChanged(int)), this, SLOT(updateSliceImageZ()));
  QObject::connect(ui->_zoomXSlider, SIGNAL(valueChanged(int)), this, SLOT(updateZoomImageX()));
  QObject::connect(ui->_zoomYSlider, SIGNAL(valueChanged(int)), this, SLOT(updateZoomImageY()));
  QObject::connect(ui->_zoomZSlider, SIGNAL(valueChanged(int)), this, SLOT(updateZoomImageZ()));

  QObject::connect(ui->_scale1ButtonX, SIGNAL(clicked()), this, SLOT(setScale1_1_ImageX()));
  QObject::connect(ui->_scale1ButtonY, SIGNAL(clicked()), this, SLOT(setScale1_1_ImageY()));
  QObject::connect(ui->_scale1ButtonZ, SIGNAL(clicked()), this, SLOT(setScale1_1_ImageZ()));

  QObject::connect(ui->_CoolButton, SIGNAL(clicked()), this, SLOT(changeCoolColorMap()));
  QObject::connect(ui->_HotButton, SIGNAL(clicked()), this, SLOT(changeHotColorMap()));
  QObject::connect(ui->_HueButton, SIGNAL(clicked()), this, SLOT(changeHueColorMap()));
  QObject::connect(ui->_NormalButton, SIGNAL(clicked()), this, SLOT(changeNormalColorMap()));


}

MainWindow::~MainWindow

(

)

Definition at line 195 of file sliceViewer.cpp.

References ui.

{
  delete ui;
}

Member Function Documentation

void MainWindow::changeCoolColorMap ( )

slot

Definition at line 210 of file sliceViewer.cpp.

References GradientMapCool, myColorMap, and updateAllDisplayedImages().

Referenced by MainWindow().

                                   {
  myColorMap = MainWindow::GradientMapCool;
  updateAllDisplayedImages();
}

void MainWindow::changeHotColorMap ( )

slot

Definition at line 218 of file sliceViewer.cpp.

References GradientMapHot, myColorMap, and updateAllDisplayedImages().

Referenced by MainWindow().

                                  {
  myColorMap = MainWindow::GradientMapHot;
  updateAllDisplayedImages();
}

void MainWindow::changeHueColorMap ( )

slot

Definition at line 214 of file sliceViewer.cpp.

References HueshadeCM, myColorMap, and updateAllDisplayedImages().

Referenced by MainWindow().

                                  {
  myColorMap = MainWindow::HueshadeCM;
  updateAllDisplayedImages();
}

void MainWindow::changeNormalColorMap ( )

slot

Definition at line 205 of file sliceViewer.cpp.

References Id, myColorMap, and updateAllDisplayedImages().

Referenced by MainWindow().

                                     {
  myColorMap = MainWindow::Id ;
  updateAllDisplayedImages();
}

void MainWindow::setImageProjX

(

const QPixmap &

aPixMap

)

Definition at line 224 of file sliceViewer.cpp.

References ui.

Referenced by updateSliceImageX(), and updateZoomImageX().

                                                    {
  ui->ImageProjX->setPixmap(aPixMap);
}

void MainWindow::setImageProjY

(

const QPixmap &

aPixMap

)

Definition at line 227 of file sliceViewer.cpp.

References ui.

Referenced by updateSliceImageY(), and updateZoomImageY().

                                                    {
  ui->ImageProjY->setPixmap(aPixMap);
}

void MainWindow::setImageProjZ

(

const QPixmap &

aPixMap

)

Definition at line 230 of file sliceViewer.cpp.

References ui.

Referenced by updateSliceImageZ(), and updateZoomImageZ().

                                                    {
  ui->ImageProjZ->setPixmap(aPixMap);
}

void MainWindow::setScale1_1_ImageX ( )

slot

Definition at line 248 of file sliceViewer.cpp.

References ui, and updateZoomImageX().

Referenced by MainWindow().

                                   {
  ui->_zoomXSlider->setValue(INIT_SCALE1_ZOOM_FACTOR);
  updateZoomImageX();
}

void MainWindow::setScale1_1_ImageY ( )

slot

Definition at line 253 of file sliceViewer.cpp.

References ui, and updateZoomImageY().

Referenced by MainWindow().

                                   {
  ui->_zoomYSlider->setValue(INIT_SCALE1_ZOOM_FACTOR);
  updateZoomImageY();
}

void MainWindow::setScale1_1_ImageZ ( )

slot

Definition at line 258 of file sliceViewer.cpp.

References ui, and updateZoomImageZ().

Referenced by MainWindow().

                                   {
  ui->_zoomZSlider->setValue(INIT_SCALE1_ZOOM_FACTOR);
  updateZoomImageZ();
}

void MainWindow::updateAllDisplayedImages

(

)

Definition at line 200 of file sliceViewer.cpp.

References updateSliceImageX(), updateSliceImageY(), and updateSliceImageZ().

Referenced by changeCoolColorMap(), changeHotColorMap(), changeHueColorMap(), and changeNormalColorMap().

                                         {
  updateSliceImageX();
  updateSliceImageY();
  updateSliceImageZ();
}

void MainWindow::updateSliceImageX	(	int	sliceNumber,
		bool	init
	)

Definition at line 329 of file sliceViewer.cpp.

References DGtal::ImageContainerBySTLVector< TDomain, TValue >::domain(), DGtal::functors::Projector< S >::initAddOneDim(), DGtal::functors::Projector< S >::initRemoveOneDim(), myColorMap, myImage3D, setImageProjX(), and ui.

                                                            {
  DGtal::functors::Projector<DGtal::Z2i::Space>  invFunctor; invFunctor.initRemoveOneDim(0);
  DGtal::Z2i::Domain domain2D(invFunctor(myImage3D->domain().lowerBound()),
                              invFunctor(myImage3D->domain().upperBound()));
  DGtal::functors::Projector<DGtal::Z3i::Space> aSliceFunctor(sliceNumber); aSliceFunctor.initAddOneDim(0);
  const functors::Identity identityFunctor{};
  SliceImageAdapter sliceImage ( *myImage3D, domain2D, aSliceFunctor, identityFunctor );

  double gridSize = ((double)INIT_SCALE1_ZOOM_FACTOR)/ui->_zoomXSlider->value();
  QImage anImage = getImage(sliceImage, gridSize,myColorMap);
  setImageProjX(QPixmap::fromImage(anImage));
  Z3i::Point imageOrigin = myImage3D->domain().lowerBound();
  if(init){
    (*myViewer) << DGtal::AddTextureImage2DWithFunctor<SliceImageAdapter, ColorMapFunctor, Z3i::Space, Z3i::KSpace>(sliceImage, myColorMap, DGtal::Viewer3D<Z3i::Space, Z3i::KSpace>::RGBMode);
    (*myViewer) << DGtal::UpdateImagePosition< Space, KSpace >(0, DGtal::Viewer3D<>::xDirection, sliceNumber,
                                                               imageOrigin[1], imageOrigin[2]);
    (*myViewer) << Viewer3D<>::updateDisplay;
  }else{
    (*myViewer) << DGtal::UpdateImageData< SliceImageAdapter, ColorMapFunctor > (0, sliceImage, 0, 0, 0 ,0,  DGtal::Viewer3D<>::xDirection, myColorMap);
    (*myViewer) << DGtal::UpdateImagePosition< Space, KSpace >(0, DGtal::Viewer3D<>::xDirection, sliceNumber, imageOrigin[1],
                                                               imageOrigin[2]);

    (*myViewer).updateList(init);
    (*myViewer).update();
  }


}

void MainWindow::updateSliceImageX ( )

slot

Definition at line 235 of file sliceViewer.cpp.

References ui.

Referenced by MainWindow(), and updateAllDisplayedImages().

                                  {
  updateSliceImageX(ui->_horizontalSliderX->value(), false);
}

void MainWindow::updateSliceImageY	(	int	sliceNumber,
		bool	init
	)

Definition at line 359 of file sliceViewer.cpp.

References DGtal::ImageContainerBySTLVector< TDomain, TValue >::domain(), DGtal::functors::Projector< S >::initAddOneDim(), DGtal::functors::Projector< S >::initRemoveOneDim(), myColorMap, myImage3D, setImageProjY(), and ui.

                                                             {

  DGtal::functors::Projector<DGtal::Z2i::Space>  invFunctor; invFunctor.initRemoveOneDim(1);
  DGtal::Z2i::Domain domain2D(invFunctor(myImage3D->domain().lowerBound()),
                              invFunctor(myImage3D->domain().upperBound()));
  DGtal::functors::Projector<DGtal::Z3i::Space> aSliceFunctor(sliceNumber); aSliceFunctor.initAddOneDim(1);
  const functors::Identity identityFunctor{};
  SliceImageAdapter sliceImage( *myImage3D, domain2D, aSliceFunctor, identityFunctor );

  double gridSize = ((double)INIT_SCALE1_ZOOM_FACTOR)/ui->_zoomYSlider->value();
  QImage anImage = getImage(sliceImage, gridSize, myColorMap);
  setImageProjY(QPixmap::fromImage(anImage));
  Z3i::Point imageOrigin = myImage3D->domain().lowerBound();
  if(init){
    (*myViewer) << DGtal::AddTextureImage2DWithFunctor<SliceImageAdapter, ColorMapFunctor, Z3i::Space, Z3i::KSpace>(sliceImage, myColorMap, DGtal::Viewer3D<Z3i::Space, Z3i::KSpace>::RGBMode);
    (*myViewer) << DGtal::UpdateImagePosition< Space, KSpace >(1, DGtal::Viewer3D<>::yDirection, imageOrigin[0],
                                                               sliceNumber, imageOrigin[2]);
    (*myViewer) << Viewer3D<>::updateDisplay;
  }else{
    (*myViewer) << DGtal::UpdateImageData< SliceImageAdapter, ColorMapFunctor > (1, sliceImage, 0,0, 0, 0,  DGtal::Viewer3D<>::yDirection, myColorMap);
    (*myViewer) << DGtal::UpdateImagePosition< Space, KSpace >(1, DGtal::Viewer3D<>::yDirection, imageOrigin[0],
                                                               sliceNumber, imageOrigin[2]);
    (*myViewer).updateList(init);
    (*myViewer).update();
  }

}

void MainWindow::updateSliceImageY ( )

slot

Definition at line 239 of file sliceViewer.cpp.

References ui.

Referenced by MainWindow(), and updateAllDisplayedImages().

                                  {
  updateSliceImageY(ui->_horizontalSliderY->value(), false);
}

void MainWindow::updateSliceImageZ	(	int	sliceNumber,
		bool	init
	)

Definition at line 388 of file sliceViewer.cpp.

References DGtal::ImageContainerBySTLVector< TDomain, TValue >::domain(), DGtal::functors::Projector< S >::initAddOneDim(), DGtal::functors::Projector< S >::initRemoveOneDim(), myColorMap, myImage3D, setImageProjZ(), and ui.

                                                            {

  DGtal::functors::Projector<DGtal::Z2i::Space>  invFunctor; invFunctor.initRemoveOneDim(2);
  DGtal::Z2i::Domain domain2D(invFunctor(myImage3D->domain().lowerBound()),
                              invFunctor(myImage3D->domain().upperBound()));
  DGtal::functors::Projector<DGtal::Z3i::Space> aSliceFunctor(sliceNumber); aSliceFunctor.initAddOneDim(2);
  const functors::Identity identityFunctor{};
  SliceImageAdapter sliceImage( *myImage3D, domain2D, aSliceFunctor, identityFunctor );
  double gridSize = (double)INIT_SCALE1_ZOOM_FACTOR/ui->_zoomZSlider->value();
  QImage anImage = getImage(sliceImage, gridSize, myColorMap);
  setImageProjZ(QPixmap::fromImage(anImage));
  Z3i::Point imageOrigin = myImage3D->domain().lowerBound();
  if(init){
    (*myViewer) << DGtal::AddTextureImage2DWithFunctor<SliceImageAdapter, ColorMapFunctor, Z3i::Space, Z3i::KSpace>(sliceImage, myColorMap, DGtal::Viewer3D<Z3i::Space, Z3i::KSpace>::RGBMode);
    (*myViewer) << DGtal::UpdateImagePosition< Space, KSpace >(2, DGtal::Viewer3D<>::zDirection, imageOrigin[0],
                                                               imageOrigin[1], sliceNumber);

    (*myViewer) << Viewer3D<>::updateDisplay;
  }else{
    (*myViewer) << DGtal::UpdateImageData< SliceImageAdapter,ColorMapFunctor > (2, sliceImage, 0,0, 0, 0,  DGtal::Viewer3D<>::zDirection,
                                                                                myColorMap);
    (*myViewer) << DGtal::UpdateImagePosition< Space, KSpace >(2, DGtal::Viewer3D<>::zDirection, imageOrigin[0],
                                                               imageOrigin[1], sliceNumber);
    (*myViewer).updateList(init);
    (*myViewer).update();
  }


}

void MainWindow::updateSliceImageZ ( )

slot

Definition at line 243 of file sliceViewer.cpp.

References ui.

Referenced by MainWindow(), and updateAllDisplayedImages().

                                  {
  updateSliceImageZ(ui->_horizontalSliderZ->value(), false);
}

void MainWindow::updateZoomImageX	(	int	sliceNumber,
		double	gridSize
	)

Definition at line 293 of file sliceViewer.cpp.

References DGtal::ImageContainerBySTLVector< TDomain, TValue >::domain(), DGtal::functors::Projector< S >::initAddOneDim(), DGtal::functors::Projector< S >::initRemoveOneDim(), myColorMap, myImage3D, and setImageProjX().

                                                                 {
  DGtal::functors::Projector<DGtal::Z2i::Space>  invFunctor; invFunctor.initRemoveOneDim(0);
  DGtal::Z2i::Domain domain2D(invFunctor(myImage3D->domain().lowerBound()),
                              invFunctor(myImage3D->domain().upperBound()));
  DGtal::functors::Projector<DGtal::Z3i::Space> aSliceFunctor(sliceNumber); aSliceFunctor.initAddOneDim(0);
  const functors::Identity identityFunctor{};
  SliceImageAdapter sliceImage( *myImage3D, domain2D, aSliceFunctor, identityFunctor );
  QImage anImage = getImage(sliceImage, gridSize, myColorMap);
  setImageProjX(QPixmap::fromImage(anImage));
}

void MainWindow::updateZoomImageX ( )

slot

Definition at line 265 of file sliceViewer.cpp.

References ui.

Referenced by MainWindow(), and setScale1_1_ImageX().

                                 {
  double gridSize = (double)INIT_SCALE1_ZOOM_FACTOR/ui->_zoomXSlider->value();
  updateZoomImageX(ui->_horizontalSliderX->value(), gridSize );
  QString gridStr = QString::number(gridSize, 'f', 3);
  QString scaleStr = QString::number(1.0/gridSize, 'f', 3);
  ui->_groupBoxX->setTitle(QString("Slice View X: sampling grid size: ").append(gridStr).
                           append(QString(" (zoom x "). append(scaleStr).append(QString(")") )));
}

void MainWindow::updateZoomImageY	(	int	sliceNumber,
		double	gridSize
	)

Definition at line 304 of file sliceViewer.cpp.

References DGtal::ImageContainerBySTLVector< TDomain, TValue >::domain(), DGtal::functors::Projector< S >::initAddOneDim(), DGtal::functors::Projector< S >::initRemoveOneDim(), myColorMap, myImage3D, and setImageProjY().

                                                                 {
  DGtal::functors::Projector<DGtal::Z2i::Space>  invFunctor; invFunctor.initRemoveOneDim(1);
  DGtal::Z2i::Domain domain2D(invFunctor(myImage3D->domain().lowerBound()),
                              invFunctor(myImage3D->domain().upperBound()));
  DGtal::functors::Projector<DGtal::Z3i::Space> aSliceFunctor(sliceNumber); aSliceFunctor.initAddOneDim(1);
  const functors::Identity identityFunctor{};
  SliceImageAdapter sliceImage( *myImage3D, domain2D, aSliceFunctor, identityFunctor );

  QImage anImage = getImage(sliceImage, gridSize, myColorMap);
  setImageProjY(QPixmap::fromImage(anImage));
}

void MainWindow::updateZoomImageY ( )

slot

Definition at line 273 of file sliceViewer.cpp.

References ui.

Referenced by MainWindow(), and setScale1_1_ImageY().

                                 {
  double gridSize = (double)INIT_SCALE1_ZOOM_FACTOR/ui->_zoomYSlider->value();
  updateZoomImageY(ui->_horizontalSliderY->value(), gridSize );
  QString gridStr = QString::number(gridSize, 'f', 3);
  QString scaleStr = QString::number(1.0/gridSize, 'f', 3);
  ui->_groupBoxY->setTitle(QString("Slice View Y: sampling grid size: ").append(gridStr).
                           append(QString(" (zoom x "). append(scaleStr).append(QString(")") )));

}

void MainWindow::updateZoomImageZ	(	int	sliceNumber,
		double	gridSize
	)

Definition at line 317 of file sliceViewer.cpp.

References DGtal::ImageContainerBySTLVector< TDomain, TValue >::domain(), DGtal::functors::Projector< S >::initAddOneDim(), DGtal::functors::Projector< S >::initRemoveOneDim(), myColorMap, myImage3D, and setImageProjZ().

                                                                 {
  DGtal::functors::Projector<DGtal::Z2i::Space>  invFunctor; invFunctor.initRemoveOneDim(2);
  DGtal::Z2i::Domain domain2D(invFunctor(myImage3D->domain().lowerBound()),
                              invFunctor(myImage3D->domain().upperBound()));
  DGtal::functors::Projector<DGtal::Z3i::Space> aSliceFunctor(sliceNumber); aSliceFunctor.initAddOneDim(2);
  const functors::Identity identityFunctor{};
  SliceImageAdapter sliceImage( *myImage3D, domain2D, aSliceFunctor, identityFunctor );
  QImage anImage = getImage(sliceImage, gridSize, myColorMap );
  setImageProjZ(QPixmap::fromImage(anImage));
}

void MainWindow::updateZoomImageZ ( )

slot

Definition at line 282 of file sliceViewer.cpp.

References ui.

Referenced by MainWindow(), and setScale1_1_ImageZ().

                                 {
  double gridSize = (double)INIT_SCALE1_ZOOM_FACTOR/ui->_zoomZSlider->value();
  updateZoomImageZ(ui->_horizontalSliderZ->value(), gridSize );
  QString gridStr = QString::number(gridSize, 'f', 3);
  QString scaleStr = QString::number(1.0/gridSize, 'f', 3);
  ui->_groupBoxZ->setTitle(QString("Slice View Z: sampling grid size: ").append(gridStr).
                           append(QString(" (zoom x "). append(scaleStr).append(QString(")") )));

}

Field Documentation

ColorMapFunctor MainWindow::myColorMap

private

Definition at line 145 of file sliceViewer.h.

Referenced by changeCoolColorMap(), changeHotColorMap(), changeHueColorMap(), changeNormalColorMap(), updateSliceImageX(), updateSliceImageY(), updateSliceImageZ(), updateZoomImageX(), updateZoomImageY(), and updateZoomImageZ().

Image3D* MainWindow::myImage3D

private

Definition at line 144 of file sliceViewer.h.

Referenced by updateSliceImageX(), updateSliceImageY(), updateSliceImageZ(), updateZoomImageX(), updateZoomImageY(), and updateZoomImageZ().

DGtal::Viewer3D* MainWindow::myViewer

private

Definition at line 143 of file sliceViewer.h.

Ui::MainWindow* MainWindow::ui

private

Definition at line 142 of file sliceViewer.h.

Referenced by MainWindow(), setImageProjX(), setImageProjY(), setImageProjZ(), setScale1_1_ImageX(), setScale1_1_ImageY(), setScale1_1_ImageZ(), updateSliceImageX(), updateSliceImageY(), updateSliceImageZ(), updateZoomImageX(), updateZoomImageY(), updateZoomImageZ(), and ~MainWindow().

---

The documentation for this class was generated from the following files:

• sliceViewer.h
• sliceViewer.cpp
