volBoundary2obj

Extracts digital points from 3d vol files.

Usage: volBoundary2obj [input] [output]

Allowed options are:

-h [ --help ]                    display this message
-i [ --input ] arg               vol file (.vol) , pgm3d (.p3d or .pgm3d, pgm
                                 (with 3 dims)) file or sdp (sequence of
                                 discrete points)
-o [ --output ] arg              output obj file (.obj)
-m [ --thresholdMin ] arg (=0)   threshold min (excluded) to define binary
                                 shape
-M [ --thresholdMax ] arg (=255) threshold max (included) to define binary
                                 shape
--dicomMin arg (=-1000)          set minimum density threshold on Hounsfield
                                 scale
--dicomMax arg (=3000)           set maximum density threshold on Hounsfield
                                 scale
--mode arg (=INNER)              set mode for display: INNER: inner voxels,
                                 OUTER: outer voxels, BDRY: surfels
-n [ --normalization ]           Normalization so that the geometry fits in
                                 [-1/2,1/2]^3

Example:

$ volBoundary2obj -i $DGtal/examples/samples/lobster.vol -m 80 -o out.obj

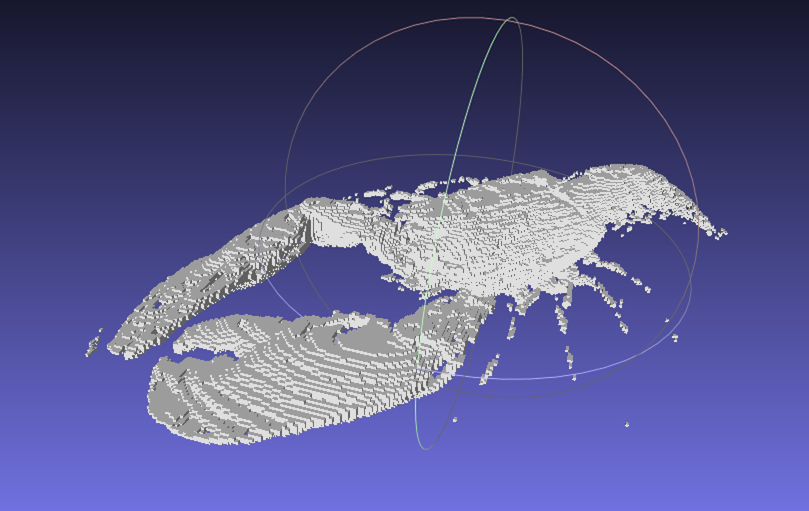

You should obtain such a visualization:

resulting visualisation.

See also

volBoundary2obj.cpp
